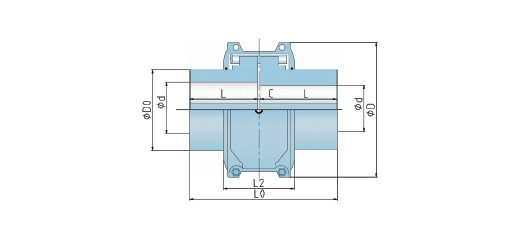

型號 |
公稱轉矩 Tn N.m |
許用轉速 （n） rpm |
******軸孔 d mm |
軸孔長度 L mm |
總長 L0 mm |
L2 mm |
D mm |
D0 mm |
間隙 C mm |
質量無孔 kg |
轉動慣量 I Kg.m2 |
充油量 kg |
|
6020T |
52 |
4500 |
28 |
50 |
103 |
68 |
105 |
39.7 |
3 |
2.00 |
0.0014 |
0.027 |
|
6030T |
149 |
4500 |
35 |
50 |
103 |
70 |
115 |
49.2 |
3 |
2.72 |
0.0022 |
0.041 |
|
6040T |
249 |
4500 |
42 |
55 |
113 |
81 |
130 |
57.2 |
3 |
3.63 |
0.0033 |
0.054 |
|
6050T |
435 |
4500 |
50 |
65 |
133 |
94 |
130 |
66.7 |
3 |
5.87 |
0.0073 |
0.068 |
|
6060T |
684 |
4350 |
56 |
75 |
153 |
97 |
160 |
76.2 |
3 |
8.57 |
0.0119 |
0.086 |
|
6070T |
994 |
4125 |
65 |
80 |
163 |
115 |
190 |
87.3 |
3 |
10.96 |
0.0185 |
0.113 |
|
6080T |
2050 |
3600 |
80 |
95 |
193 |
130 |
215 |
120 |
3 |
18.91 |
0.0451 |
0.172 |
|
6090T |
3730 |
3600 |
96 |
105 |
213 |
165 |
250 |
140 |
3 |
27.12 |
0.0787 |
0.254 |
|
6100T |
6280 |
2440 |
110 |
125 |
255 |
155 |
260 |
155 |
5 |
43.76 |
0.1780 |
0.426 |
|
6110T |
9320 |
2250 |
120 |
135 |
275 |
195 |
300 |
175 |
5 |
57.87 |
0.2700 |
0.508 |
|
6120T |
13700 |
2025 |
140 |
155 |
316 |
195 |
340 |
215 |
6 |
84.42 |
0.5140 |
0.735 |
|
6130T |
19900 |
1800 |
170 |
175 |
356 |
200 |
376 |
255 |
6 |
130.79 |
0.9590 |
0.908 |
|
6140T |
28600 |
1650 |
200 |
190 |
386 |
265 |
453 |
270 |
6 |
183.60 |
1.8500 |
1.135 |
|
6150T |
39800 |
1500 |
215 |
200 |
406 |
260 |
494 |
305 |
6 |
256.16 |
3.4900 |
1.952 |
|
6160T |
55900 |
1350 |
240 |
215 |
436 |
300 |
539 |
360 |
6 |
343.92 |
5.8200 |
2.815 |
|
6170T |
74600 |
1225 |
280 |
230 |
466 |
310 |
597 |
395 |
6 |
477.36 |
10.400 |
3.496 |
|
6180T |
103000 |
1100 |
300 |
270 |
546 |
310 |
663 |
440 |
6 |
700.67 |
18.300 |
3.768 |
|
6190T |
137000 |
1050 |
320 |
290 |
586 |
350 |
720 |
500 |
6 |
868.92 |
26.100 |
4.400 |
|
6200T |
186000 |
900 |
360 |
320 |
646 |
450 |
850 |
530 |
6 |
1211.73 |
43.500 |
5.630 |
|
6210T |
249000 |
820 |
380 |
350 |
713 |
500 |
920 |
570 |
13 |
1636.96 |
75.500 |
10.53 |
|
6220T |
336000 |
730 |
420 |
390 |
793 |
546 |
1000 |
571.5 |
13 |
2143.12 |
113.00 |
16.07 |
|
6230T |
435000 |
680 |
450 |
420 |
853 |
648 |
1000 |
609.6 |
13 |
2757.84 |
175.00 |
24.06 |
|
6240T |
559000 |
630 |
480 |
450 |
913 |
698 |
1020 |
647.7 |
13 |
3643.37 |
339.00 |
33.82 |
|
6250T |
746000 |
580 |
500 |
480 |
973 |
762 |
1080 |
711.2 |
13 |
4351.71 |
524.00 |
50.17 |
|
6260T |
932000 |
540 |
540 |
500 |
1013 |
760 |
1260 |
762.0 |
13 |
5123.34 |
711.00 |
67.24 |
|
6270T |
1130000 |
460 |
570 |
540 |
1100 |
800 |
1350 |
- |
20 |
5832.84.00 |
932.00 |
82.35 |
|
6280T |
1320000 |
339 |
600 |
550 |
1120 |
850 |
1450 |
- |
20 |
6635.29 |
1142.00 |
101.42 |
注：具體技術參數來電咨詢0577-65205101。
